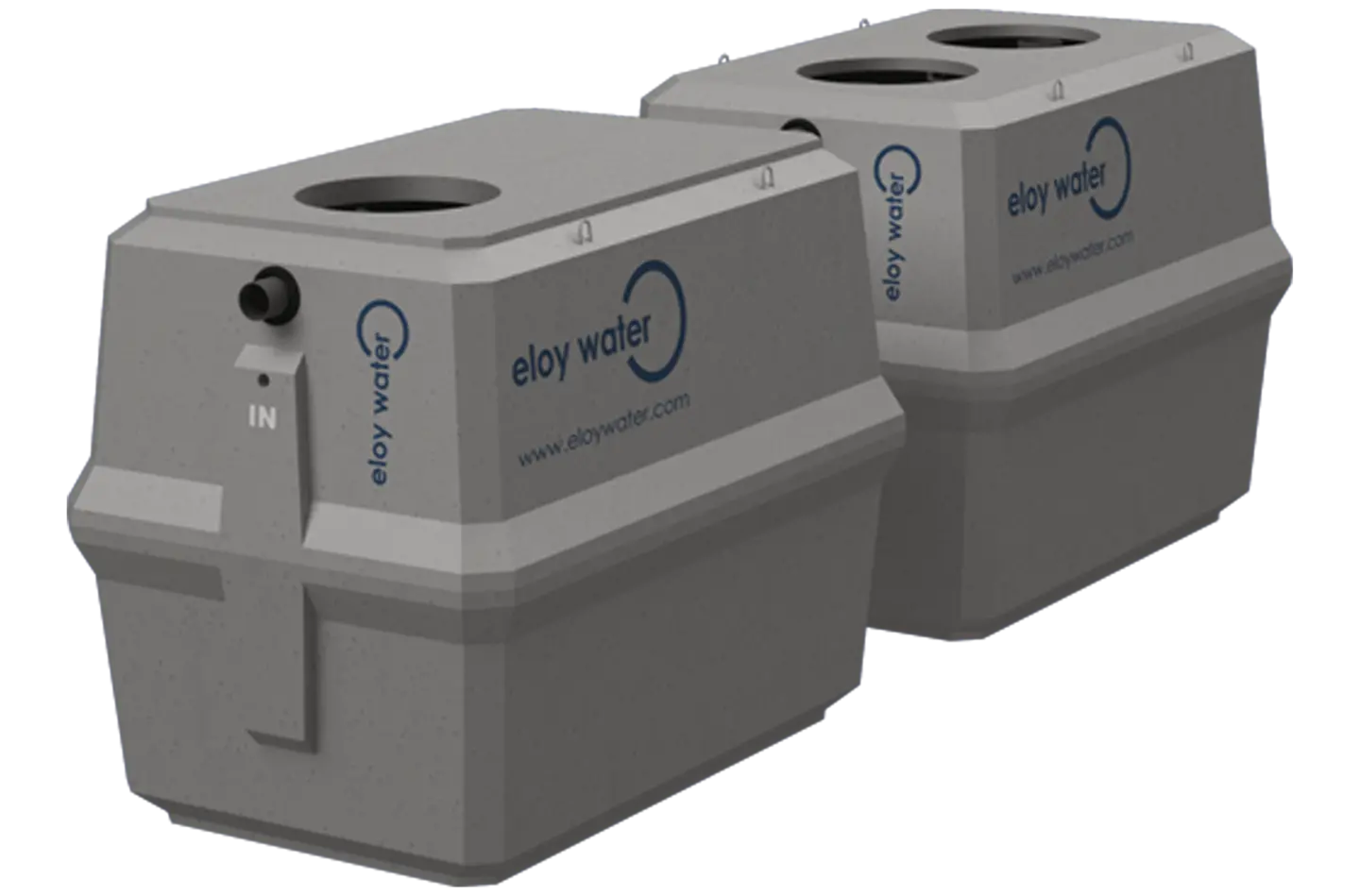

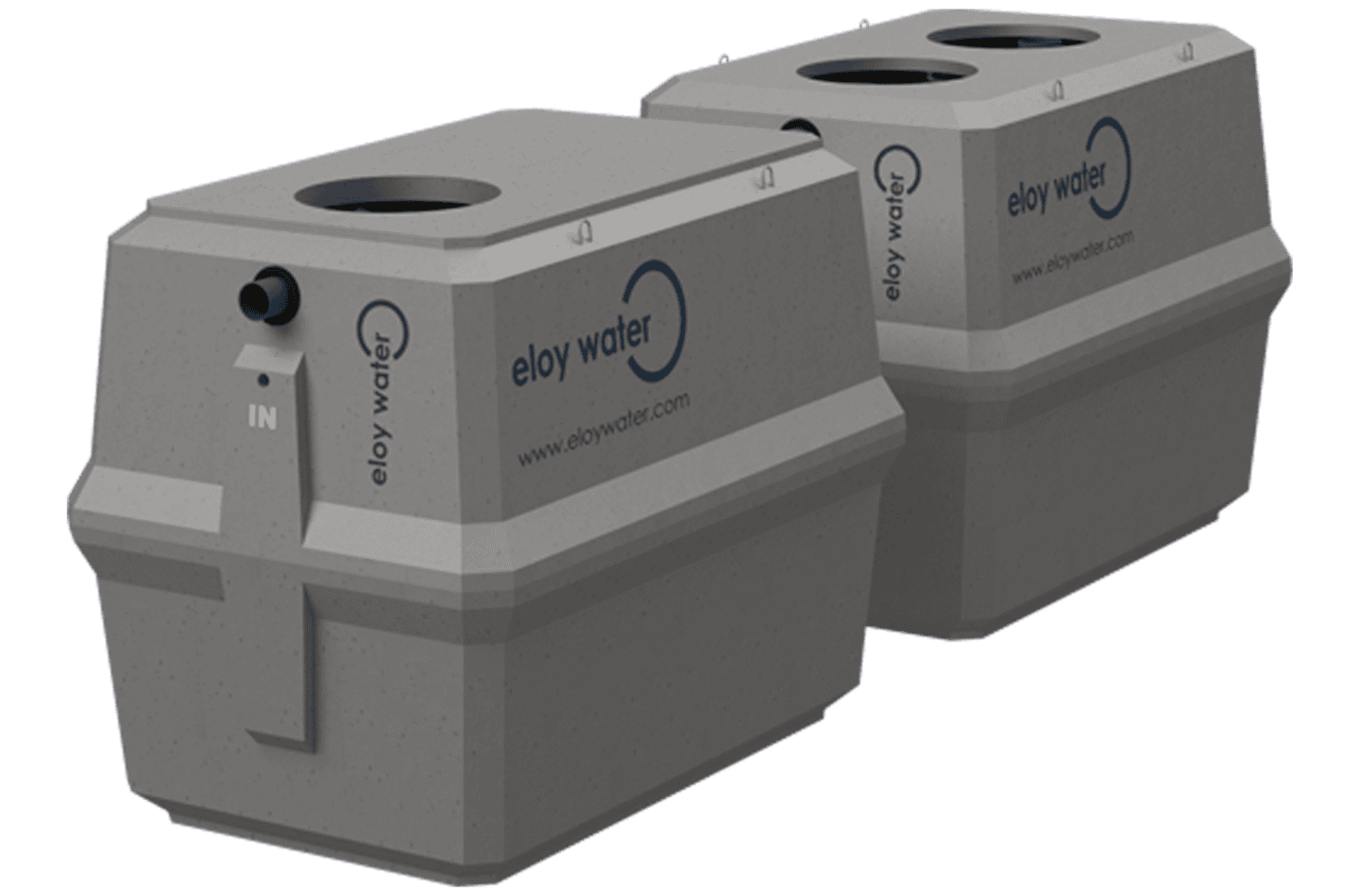

oxyfix® C-90 10 PE (2)
wastewater treatment plant
ref. FIXSEC90MB-10-2
Karakteristika
- c Lightweight vehicle traffic ≤ 3.5 t - Fiber concrete B125
- 2 Dubbel skål
Garantier
- 10 +5 10 + 5 years warranty on the tank
- 2 +1 2 + 1 years warranty on electromechanical kits
Regler och standarder
storlekssortering

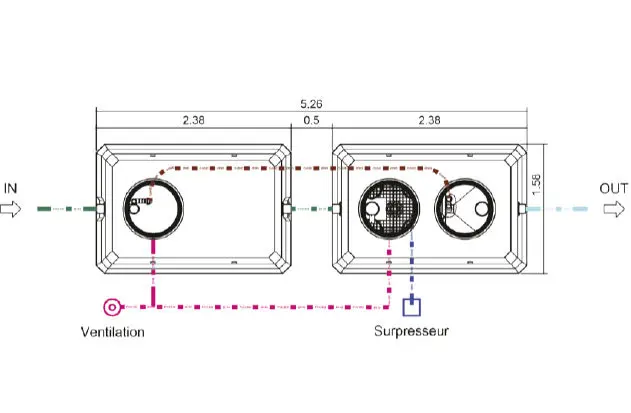

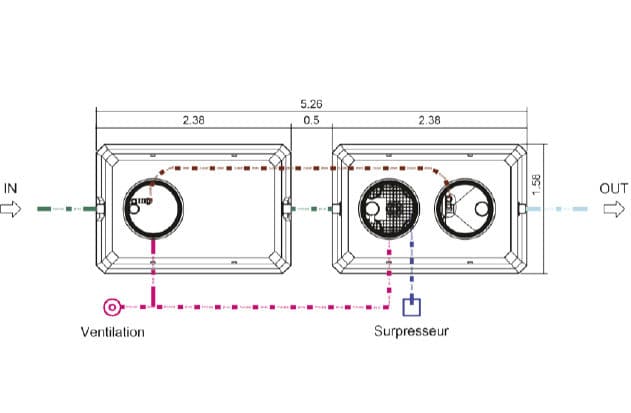

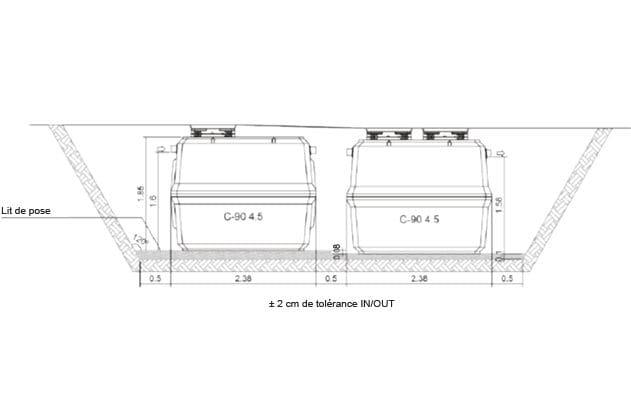

| mått | enhet | tank 1 | tank 2 |
|---|---|---|---|
| total height | cm | 185 | 185 |
| entrance height | cm | 160 | 160 |
| output height | cm | 158 | 158 |
| length | cm | 238 | 238 |
| width | cm | 158 | 158 |
| total volume | m³ | 4.50 | 4.50 |
| usable volume | m³ | 4.24 | 4.24 |
| weight | t | 2.50 | 2.48 |
| weight without buffers | t | ||
| access manhole(s) | cm | 1 x 62 | 2 x 62 |
| input (in) / output (out) | mm | 110 / 110 | 110 / 110 |
| annual energy balance | kWh | - | 815.4 |
Produktens sammansättning
- 1 micro-station (2 tanks)
- 1 blower
- 1 x 20cm Ø 19mm air pipe
- 4 PVC reductions
- 4 hydraulic slip-on couplings
- 1 x 5.5m Ø 50mm recirculation pipe
